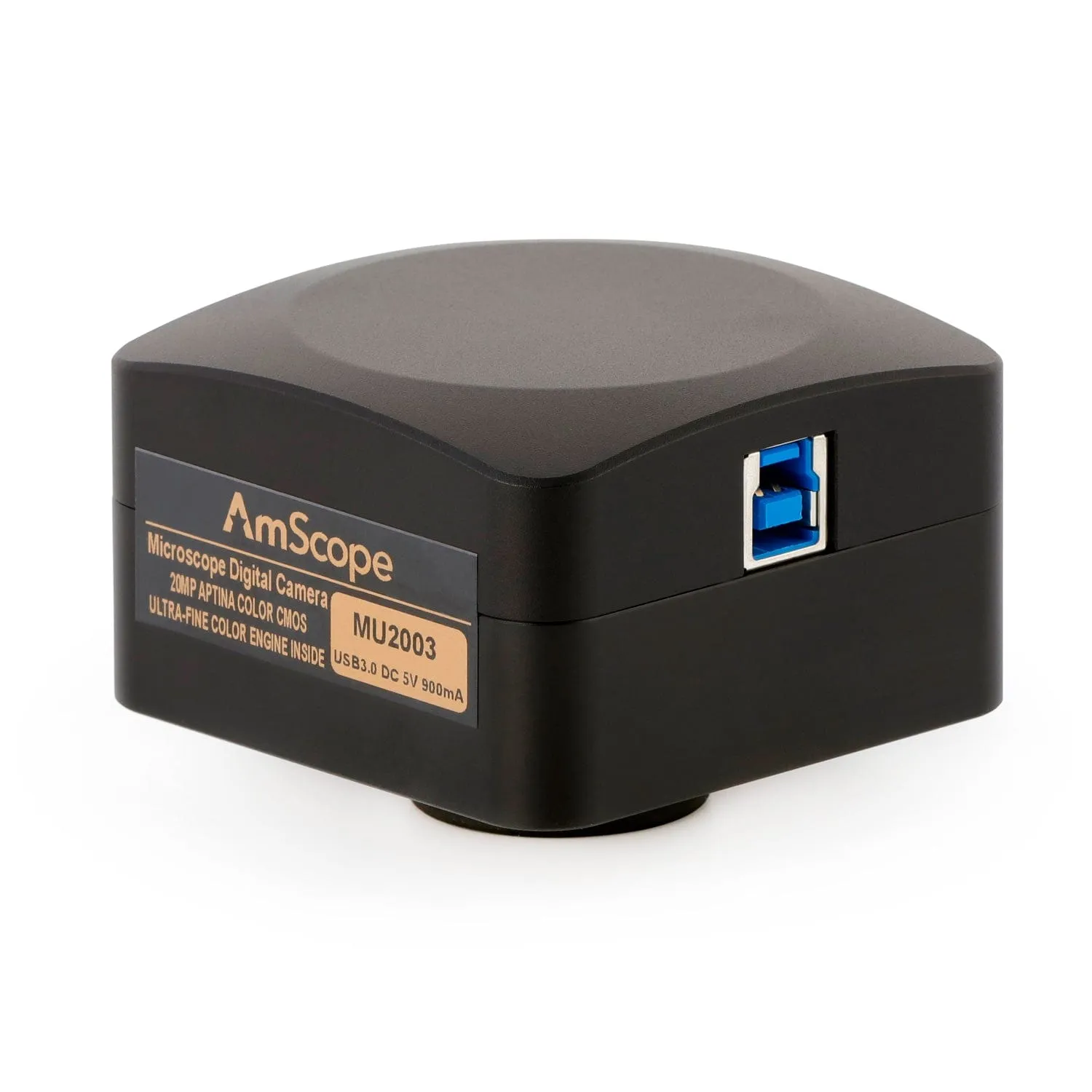

The AmScope 20MP MU2003 is part of our back-illuminated CMOS camera series. Back-illuminated CMOS sensors provide higher quantum-efficiency by moving the photo-diode layer in front of the electronic components, increasing photon-absorption. This allows a much higher gain with minimal image-noise. Images can be captured with shorter exposure times and faster framerates. The high-resolution sensor captures incredible detail with accurate colors. This camera pairs especially well with stereo microscopes used for quality control.

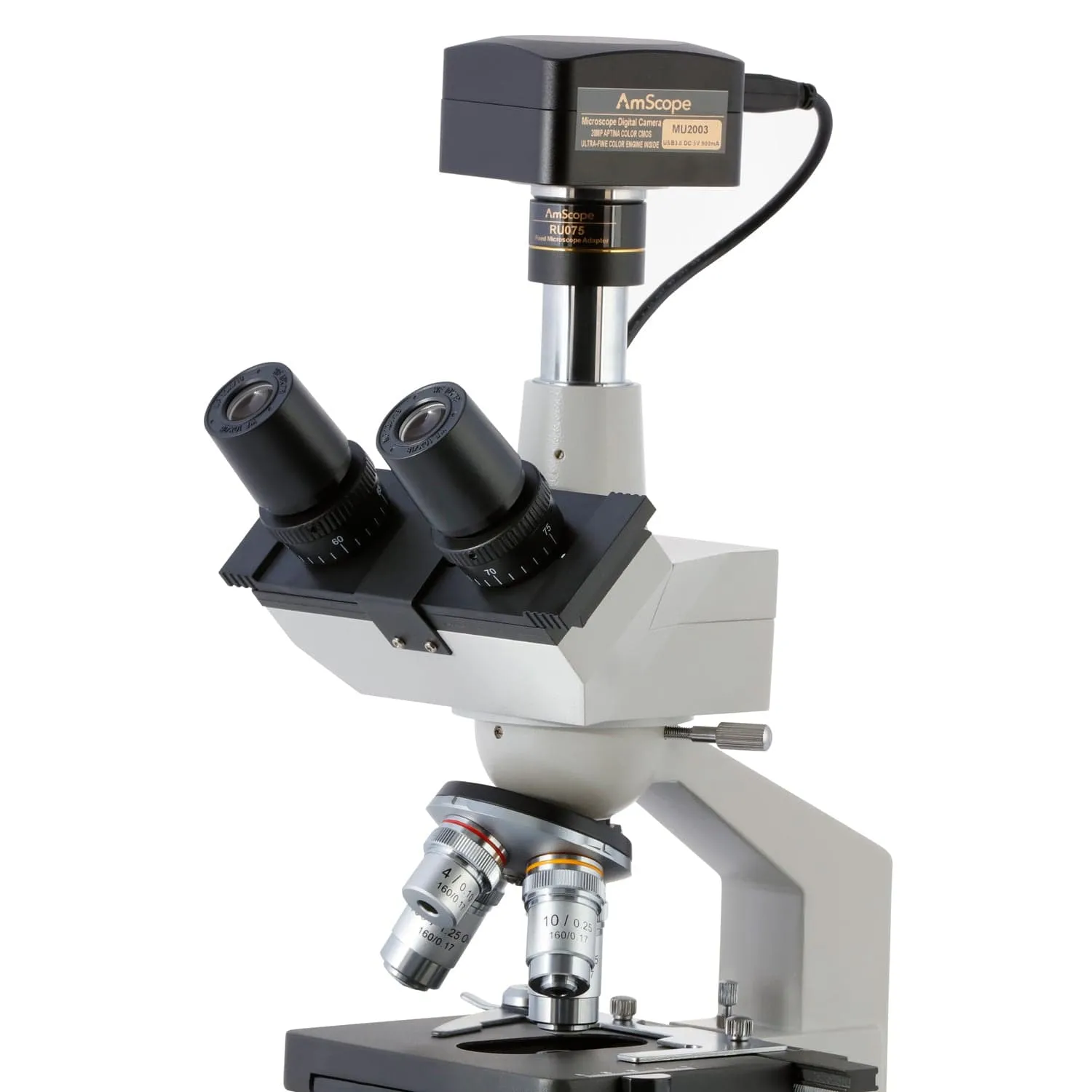

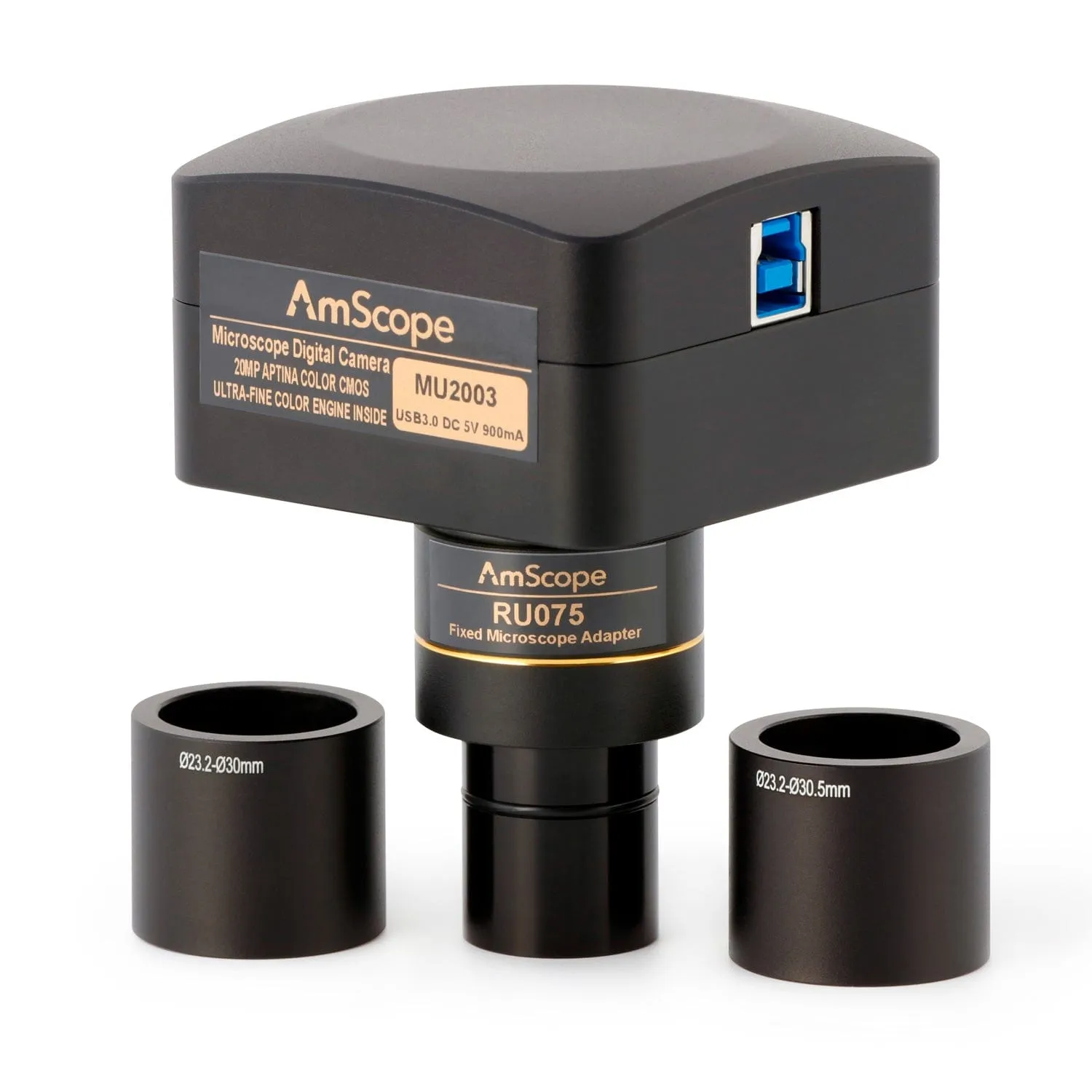

The included software for Windows allows you to make notes, shapes and watermarks with ease. You can analyze, present, and share images of samples and specimen by simply plugging one end into your computer's USB3.0 port, and the other on your microscope's eye-tube or trinocular port. Featuring built-in C-mount compatibility and 23mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm, a 30mm and a 30.5mm photo port. The camera is equipped with CMOS color sensor, and comes with a high-speed USB cord, four mounting sizes (23mm, 30mm, 30.5mm, and C-mount), and instructions.
Specifications
| Sensor Specifications | |
| Model | AR2020 (color) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/1.8" |
| Active Pixels | 20M (5120 x 3840) |
| Pixel Size | 1.4µm x 1.4µm |
| Active Sensor Area | 7.17x5.38mm |
| Shutter | electronic rolling shutter |
| Sensitivity | 8.4 ke−/lux.sec |
| Spectral Response | 380-650nm with IR-cut filter |
| Other Camera Specifications | |
| Binning | 1x1, 2x2, 3x3 |
| Video Capture Framerate |
20fps @ 5120x3840 |
| Photo Capture Resolution | 5120x3840 2560x1920 |
| Connectivity | USB 3.0 |

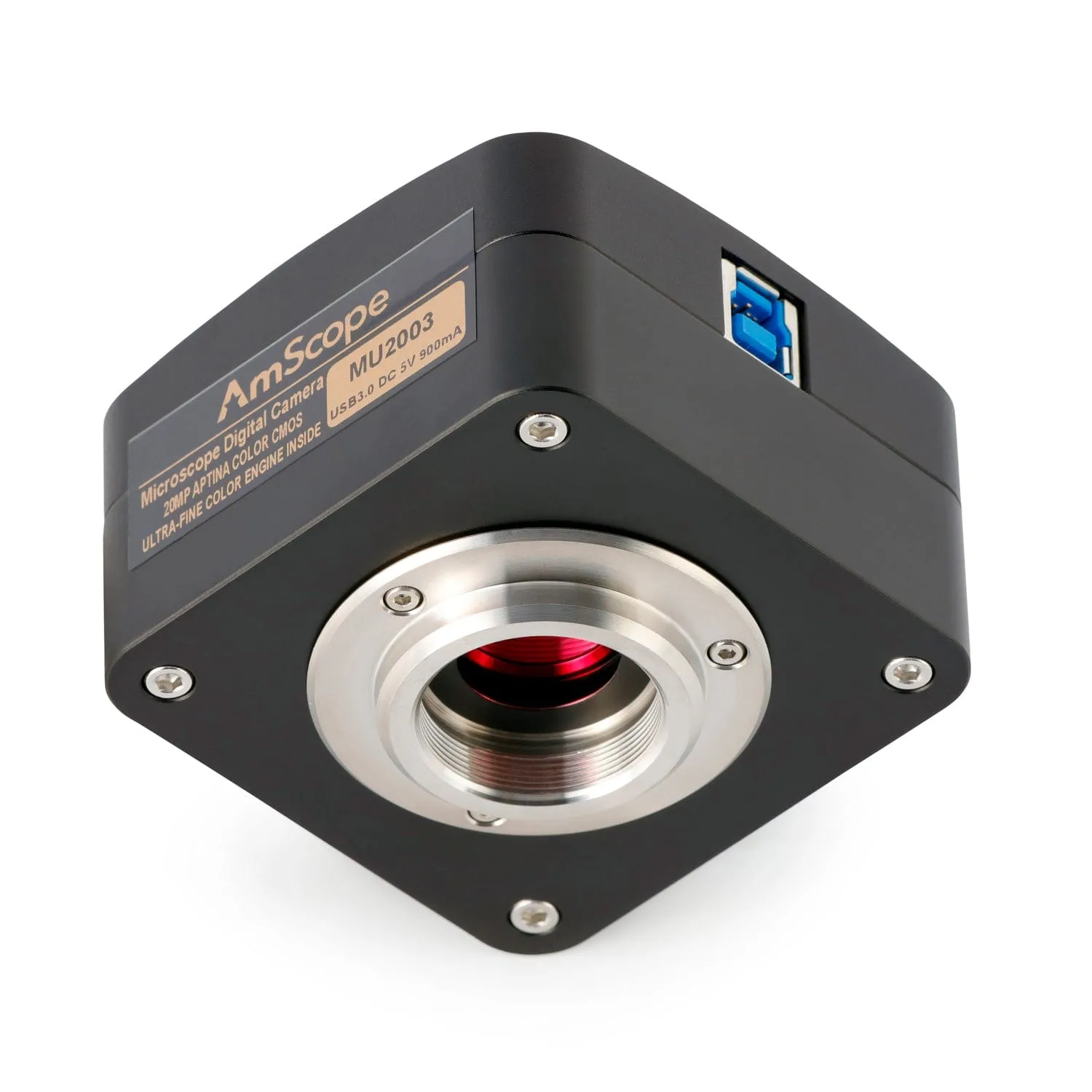

| Lens-mount | C-mount |
| Compensating Lens | 0.5X |
| Power | 5VDC 9mA over USB |
| Operating Temperature | -10-50°C |
| Operating Humidity | 30-80% |
Software
| OS Requirements | Windows (32/64 bit) 8.1/10/11, Mac OS 10.8 , Linux kernel 3.13 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
| Features |
|

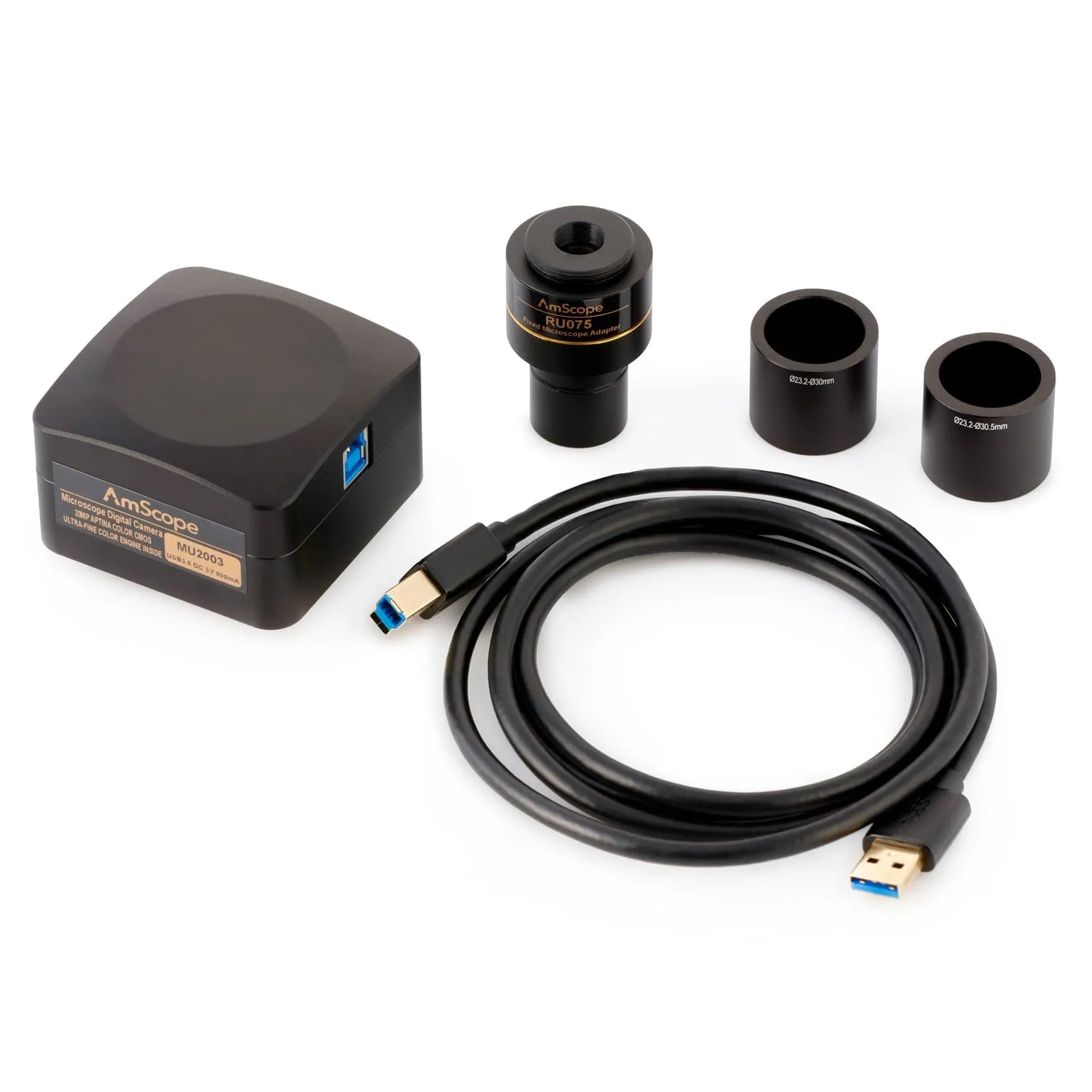

Content
- One camera
- Once C-mount dust cap
- One USB 3.0 cable
- One calibration slide
- Two Adapters: 30mm and 30.5mm
