Product Details

Overview

This kit covers the main gear door hinge bushings for the Beech Bonanza.

Avoid unnecessary and costly repairs by installing AeroTough® GF polymer bushings. This preventative maintenance solution will ensure that you will never have the complications with seized bushings that traditional metal bushings can exhibit.

Lifetime lubricated AeroTough® bushings prevent problems:

  • Eliminate anxiety about damages to the supporting structure
  • Never worry about lubricating tough-to-access place
  • Zero risk of corrosion between sleeve and bushing
  • Be proactive: The cost to repair greatly exceeds the price of prevention. Don’t wait for disasters to occur. Make the change now!


Notes:

    Accessing the main landing gear door hinge brackets is difficult. The install kit is not essential but it is highly recommended because it make the installation of the main landing gear door hinge kits much easier. The install kit includes a 0.251” reamer to re-size the ID of the bushings in case they are tight, a press-out and press-in jack that can be used to push out the OEM bushings and press in the new polymer bushings, a push pin which is an adapter for the screw jack, some “Stick-it” for holding washers etc. in place during installation and a temporary distance piece to keep the housing flanges from bending.

Features

  • An essential part of your landing gear maintenance checklist is the need for periodic lubrication of hard-to-get-at door hinge bushings. Achieving proper lubrication is challenging because access is difficult. If these bushings are not lubricated regularly, corrosion will result. This can cause the bushing and sleeve to fuse together over time, resulting in problems with the door rigging and the operation of the aircraft. This could lead to an inoperable gear door or the cracking of the gear door - a safety issue for sure and at best, an expensive repair. Our kit is insurance against the possibility of future problems.
  • The solution to this problem is AeroTough® GF polymer bushings. These non-metallic bushings can be easily installed and will provide smooth grease-free operation. AeroTough® bushings will never require lubrication. The polymer material is designed to incorporate its own lubrication. If someone doesn’t know our bushings have been fitted and decides to squirt some lubrication into the hinges, it’s no problem. Our bushings are quite happy to run in oil or grease – it’s just not necessary!
  • The Marsh Brothers Aviation Kit Includes not only the AeroTough® GF bushings, but all new hardware to re-install your landing gear doors.

Brochure

Specifications

  • Approved for installation in U.S. registered aircraft by Federal Aviation Administration Supplemental Type Certificate # SA03343NY.
  • Approved for installation in Canadian registered aircraft by Transport Canada Supplemental Type Certificate # SA13-39.
  • Reaming may be necessary, depending on any damage to the airframe (if damage is present, it is typically caused by corrosion of the OEM parts).

Approved Models

FAA Type Cert No.ModelBonanza MLG
SA13-39
Bonanza MLG
SA03343NY
A-77735
A35
B35
C35
D35
E35
F35
G35
35R
3A1535-33XX
35-A33XX
35-B33XX
35-C33XX
35-C33AXX
36XX
A36XX
A36TCXX
B36TCXX
E33XX
E33AXX
E33CXX
F33XX
F33AXX
F33CXX
G33XX
G36XX
H35XX
J35XX
K35XX
M35XX
N35XX
P35XX
S35XX
V35XX
V35AXX
V35BXX


Manufacturer Q & A

MBAs Q & A can be accessed .

Documents

Contents

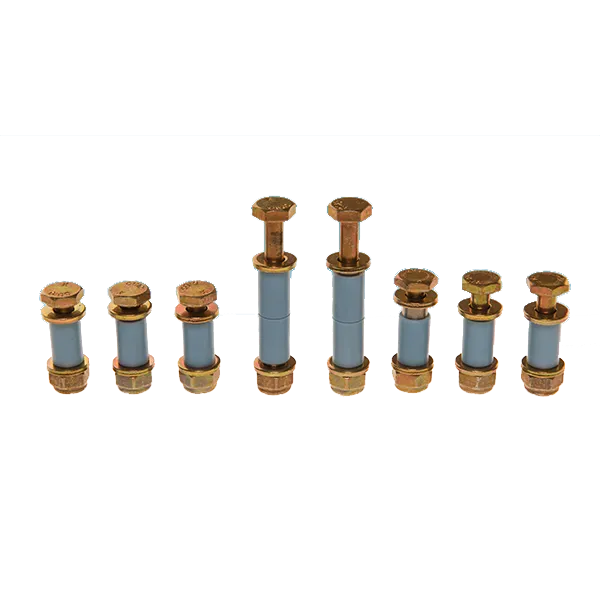

This kit covers 2 main gear doors and contains:

Part # DescriptionQtyReference OEM Part #
AN3-7ABolt4AN3-7A
AN3-10ABolt2AN3-10A
AN3-16ABolt2AN3-16A
MBA10005AeroTough GF Bushing10

105739X-ZP1050

105740X-ZR0480

105740X-ZJ0490

MBA10058SShort SS Sleeve6N/A
MBA10058LLong SS Sleeve2N/A
AN960-10AWasher16AN960-10A
AN365-1032ANut8AN365-1032A



Installation Instructions

Bonanza MLG Door Hinge Kit
  • DefaultTitle

$ 80.22

$ 61.71
