Description

Pocket Door Frame ONLY, Please Order Carriage Packs (Hardware Kit) Separately

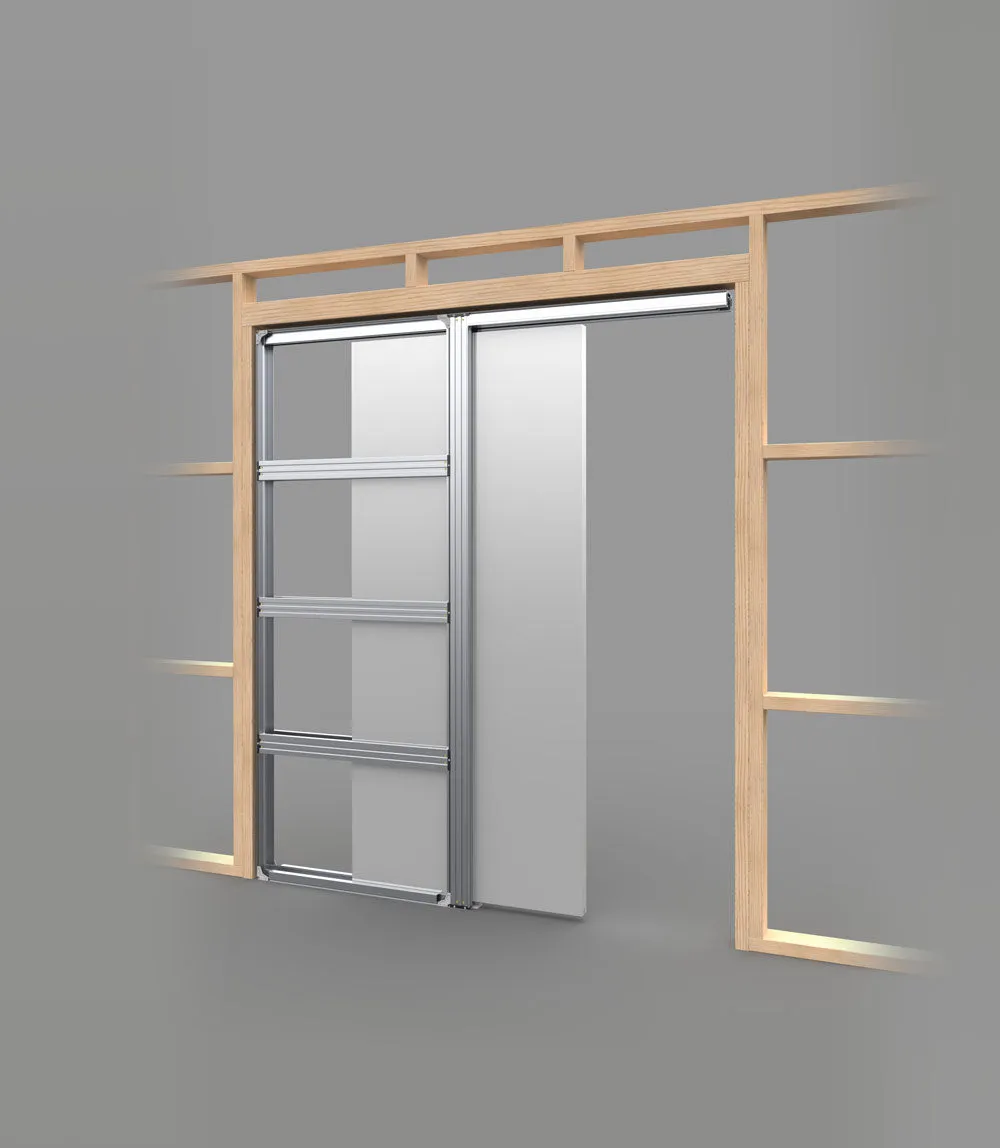

The CS Ultimate® Cavity Slider pocket door frame is the largest and most robust pocket frame on the market. The CS Ultimate is made for a 5-1/2" (144 mm) stud size and structurally robust due to its construction from aluminum extrusions.

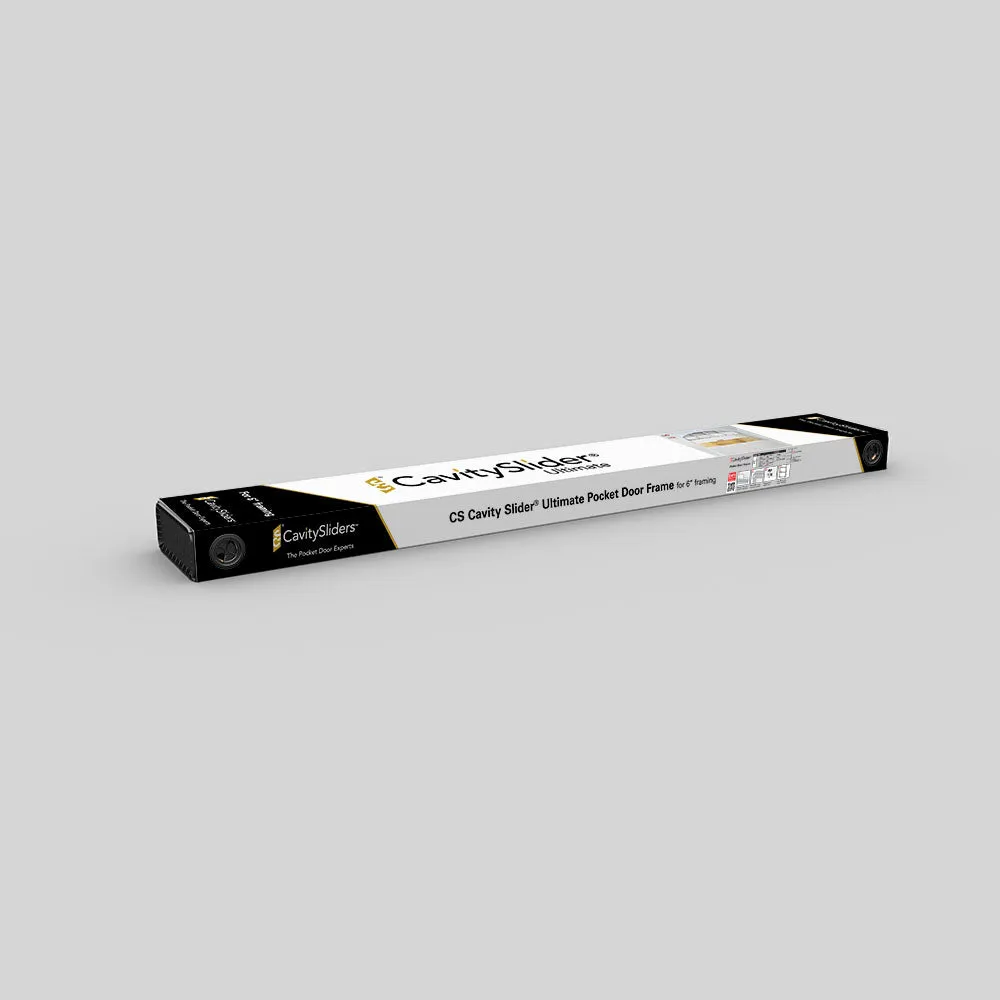

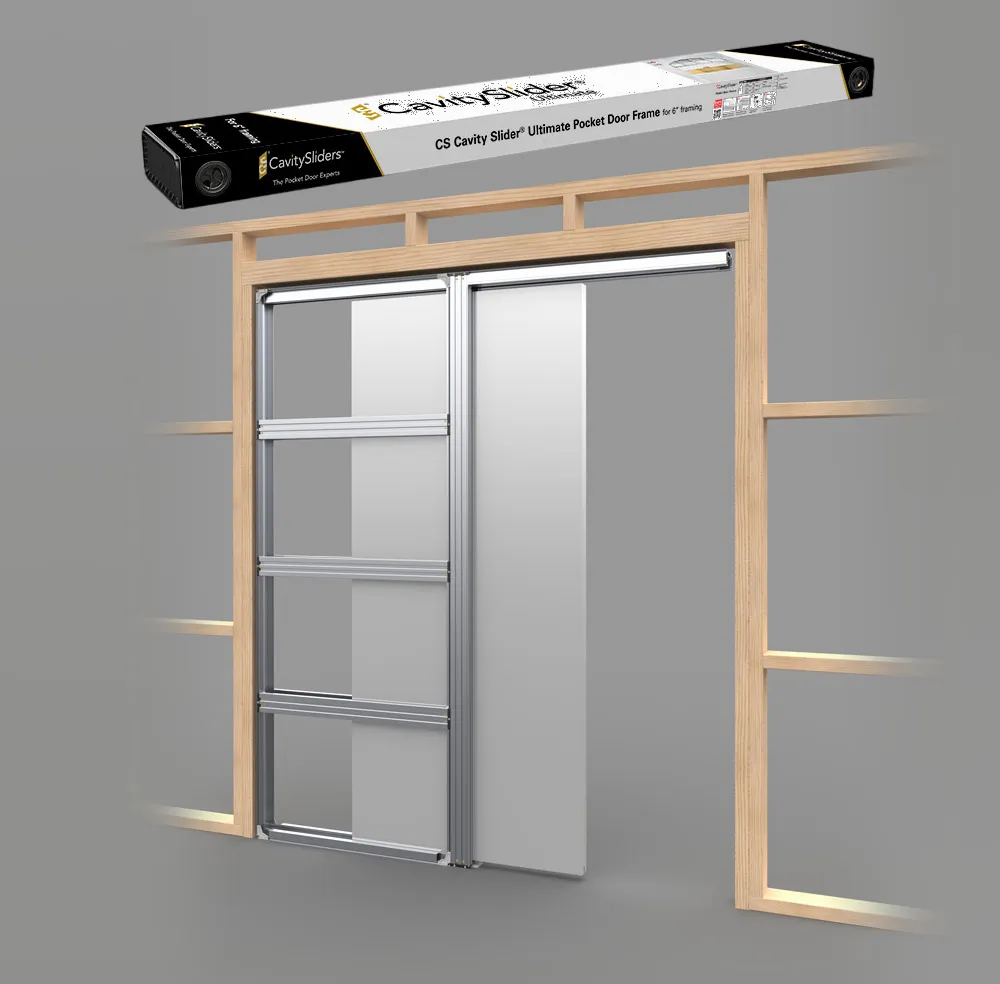

This product is supplied as a kitset and is easy to assemble and install. The pocket frame accommodates 1 3/8" to 2 1/4" thick doors up to 5’0” x 10’0” (1524 x 3048mm) in size and can be cut down to size on site. It can be upgraded the CS SofStop®, perfect for areas where quiet is required, such as bedrooms, offices and patient rooms. This product can be specified with a range of extra features to suit your unique requirements. Units are supplied in knock down kitset form for easy shipping and storage.

For Bi-Parting Function Order 2x "Cavity Sliders - CS Ultimate Cavity Slider Pocket Door Frame (Frame ONLY)"

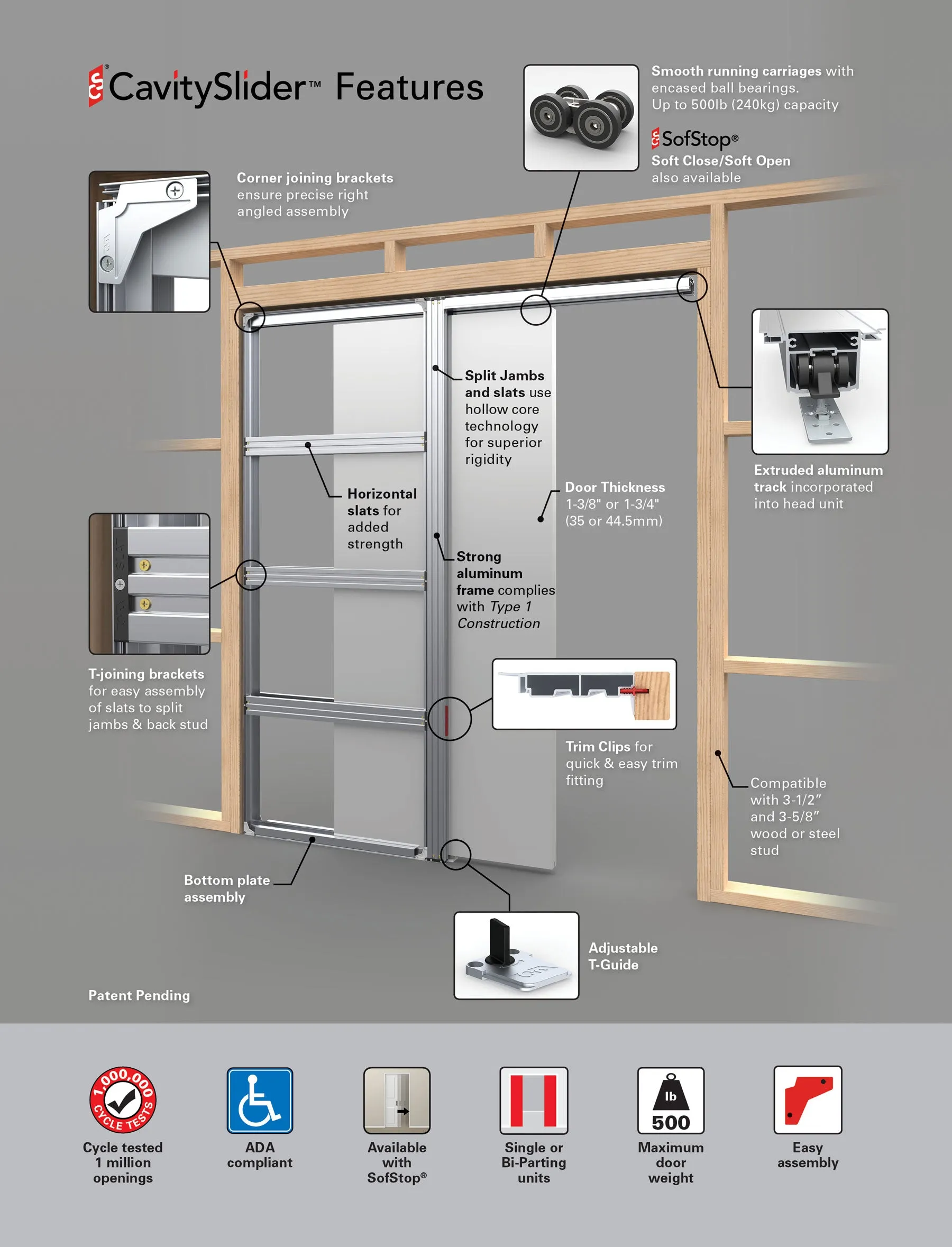

Features

• Heavy duty one-piece extruded aluminum track.
• Minimal clearance means the carriages/wheels cannot jump off the track or jam.
• Large diameter wheels with precision ground bearings make for smooth running.
• Radiused track reduces friction and allows dust to be pushed into the gutters so the door always slides smoothly. M8 body made from cast stainless steel for strength and reliability. 4-wheel carriages are standard on all doors over 200lb.
• CarriSnap™ quick release system allows the door to be removed easily from the track; no need to unscrew anything and lose door height adjustment.

Specification

Specification

How to order

1. Choose Size: Frames can be cut down on site. Maximum size for each model shown below:

Extrusion Cut Length

Extrusion Cut Length

When cutting your frame down to a custom size, please review these drawings for the recommended lengths to cut your extrusions. Click on the size you want below to download the drawing.Door Height: 6'8

Door Height: 7'0"

Door Height: 7'6"

Door Height: 8'0"
