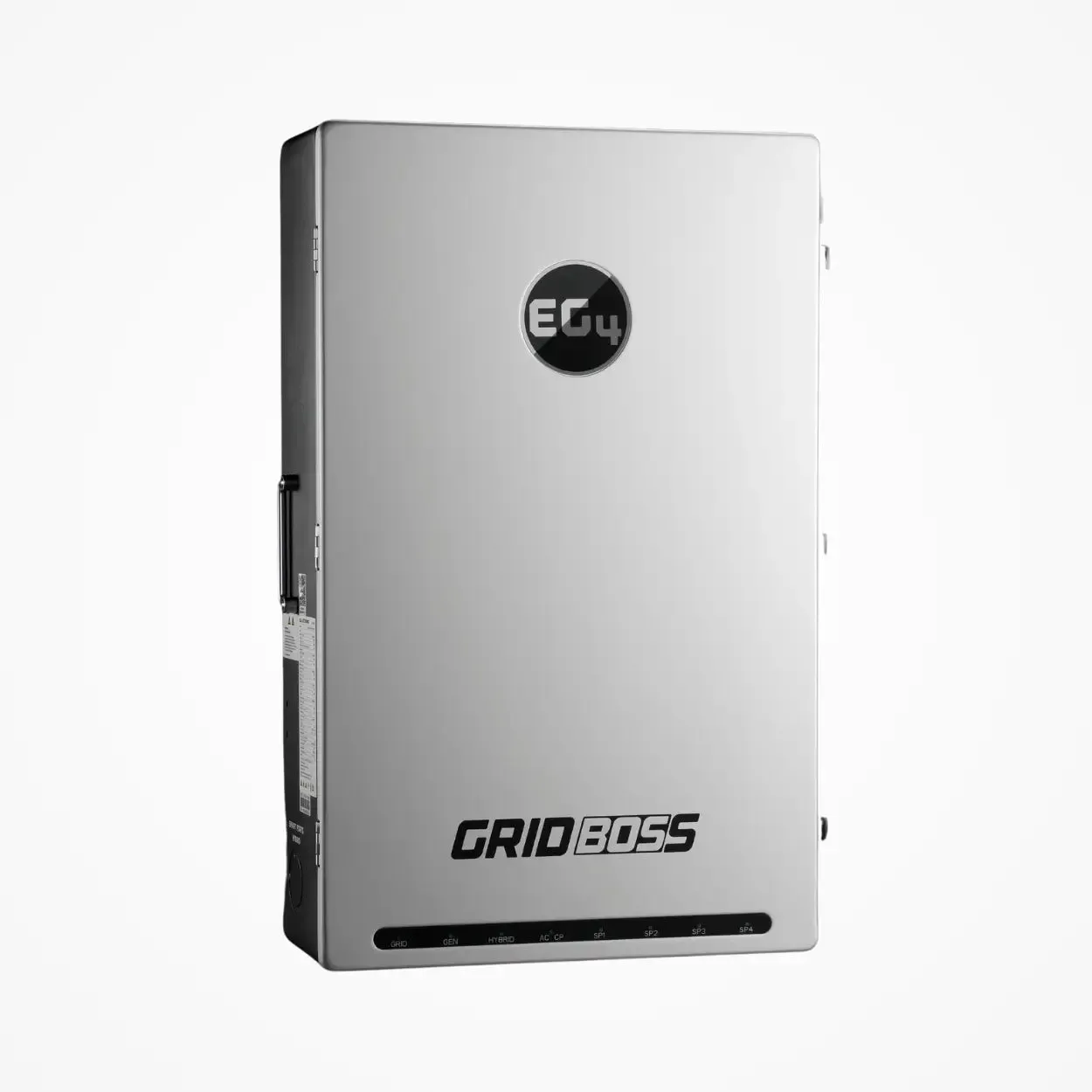

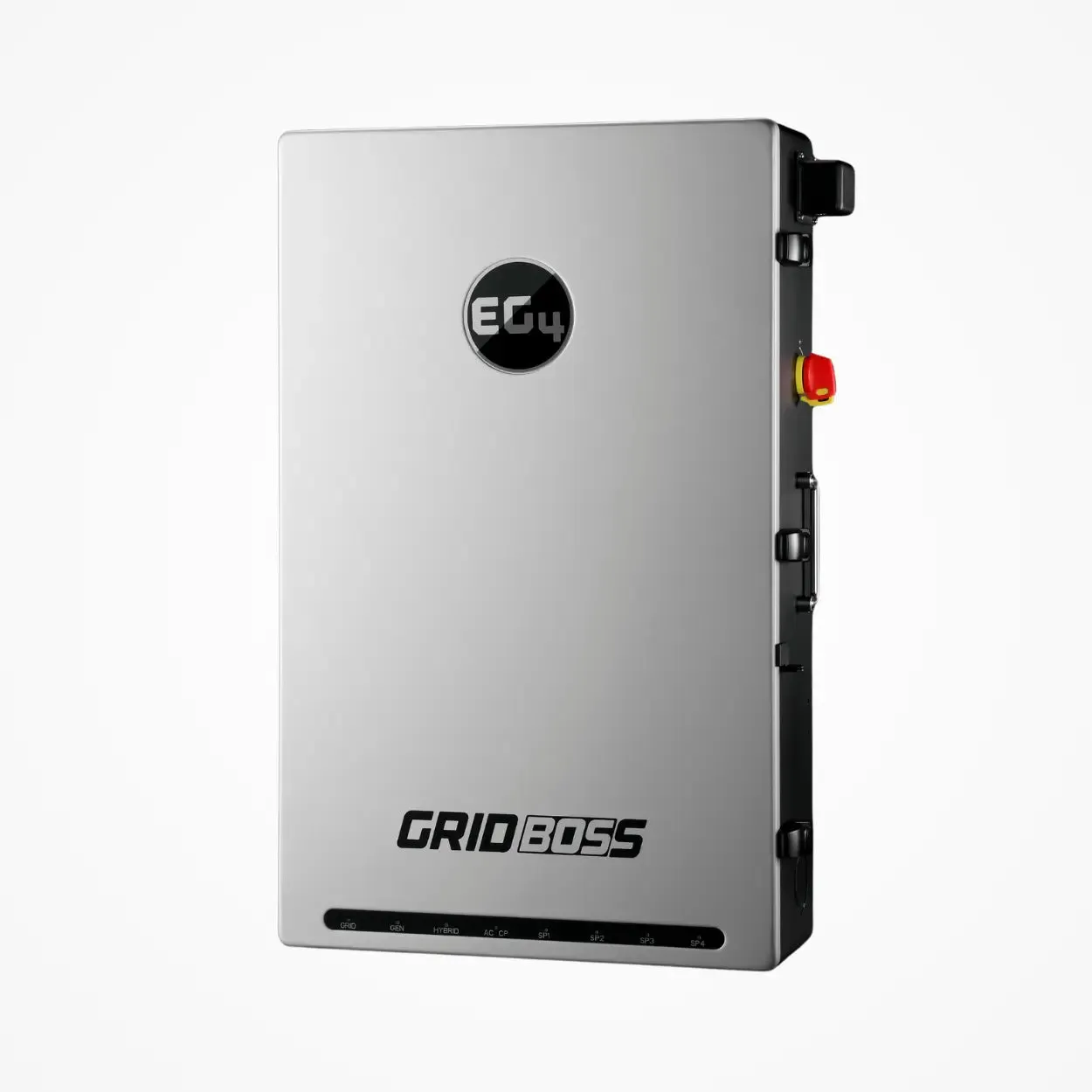

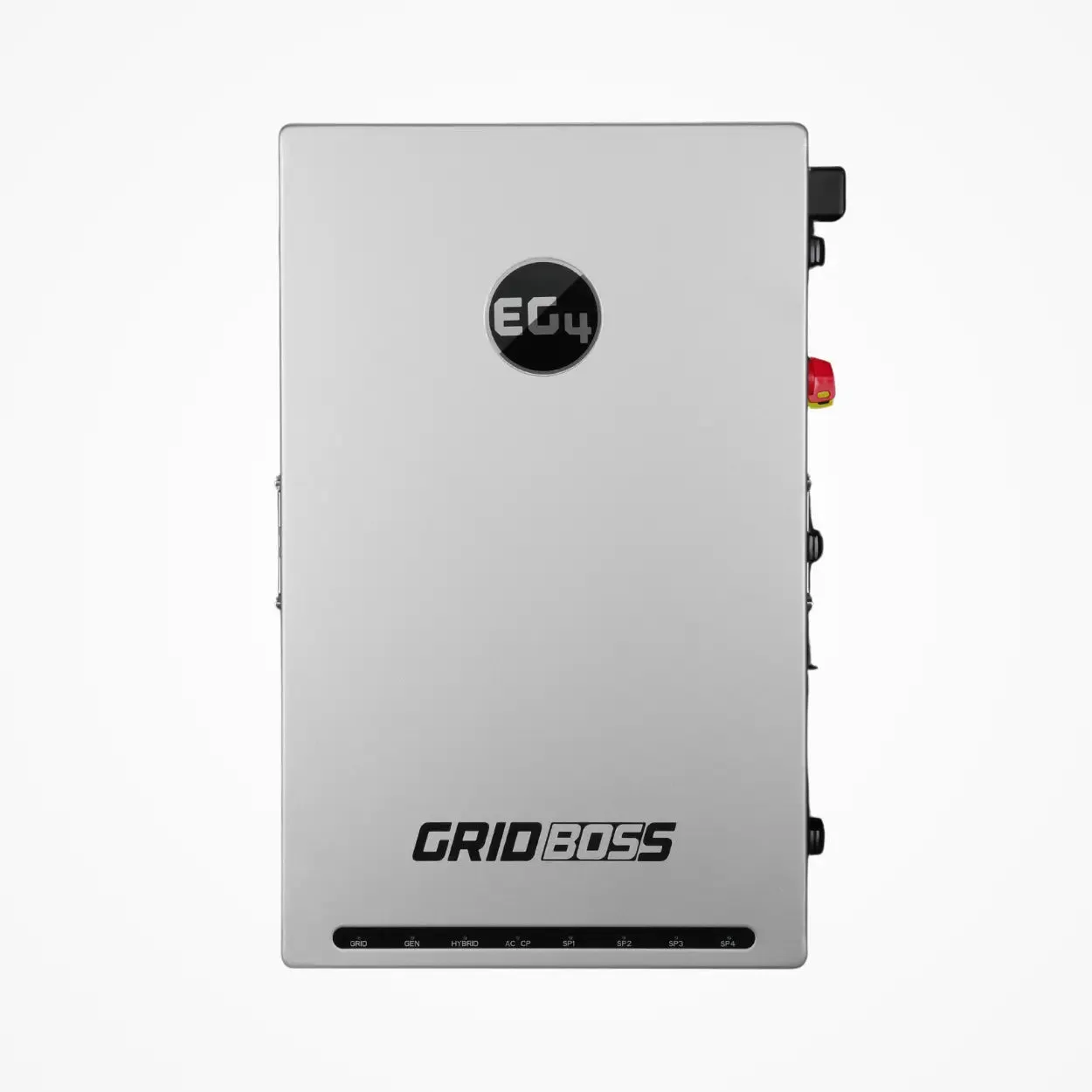

EG4® GridBOSS MID | 200A Service Entrance

The EG4 GridBOSS beats every Microgrid Interconnect Device (MID) / power gateway on the market in terms of capabilities and ratings. The GridBOSS simplifies the design and operation of complex solar installations, reducing hardware costs and installation time. Featuring four intelligent ports for AC coupling or smart load management up to 125 Amps, it consolidates multiple electrical components into a single device with a 200A service entrance rating.

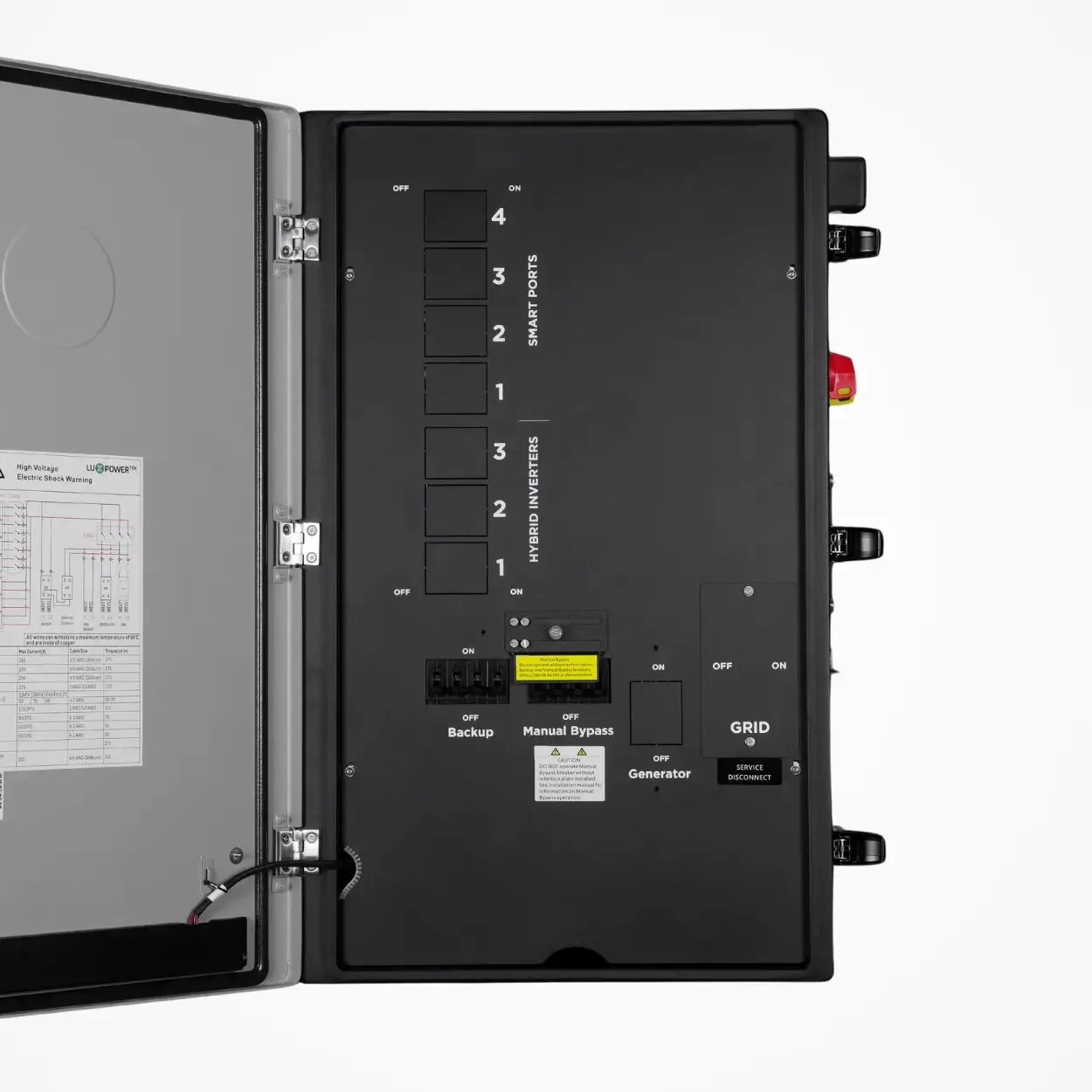

The GridBOSS serves as a centralized connection point for utility power, up to three 90A hybrid inverters, four programmable smart/AC-couple ports, and a generator (up to 125 Amps). It is rated for 200 Amps for both backed-up and non-backed-up loads, ensuring seamless operation under high load conditions and continuous power to essential loads during grid outages.

When paired with the FlexBOSS21, the GridBOSS significantly reduces installation expenses by eliminating extra components and installation time, making it an efficient, cost-effective solution for whole or partial home backup and microgrid setups.

Features & Benefits:

• Simplified Integration: Single connection point for utility, inverters, generator, and loads
• Cost-Effective: Saves up to $7,500 by reducing equipment and installation time
• 200A Service Entrance Rating: Combines components, saving labor and simplifying installation
• 200A Backup and Non-Backup Support: Ensures reliability for critical systems
• Smart Load Ports: Four configurable ports (125, 80, 60, 60 Amps), supporting up to 244A continuous current
• Advanced Port Programming: Five drivers for optimized load management
• Energy Flow Monitoring & Compatibility: Monitors eight circuits, supports generators, and integrates with EG4 inverters
