Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Rectangular |
| Cable Length | 1 m |
| Connection Type | Cable 3-Wire |
| Current, Switching | 100 mA |
| Frequency, Switching | 0.5 kHz |
| Housing Material | Plastic, PBT |
| IP Rating | IP68G |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 2.5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | Bracket/Panel Non-Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | NPN-NO |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Unshielded |
| Supply Voltage | 12-24 VDC |
| Termination | 3-wire |
Overview

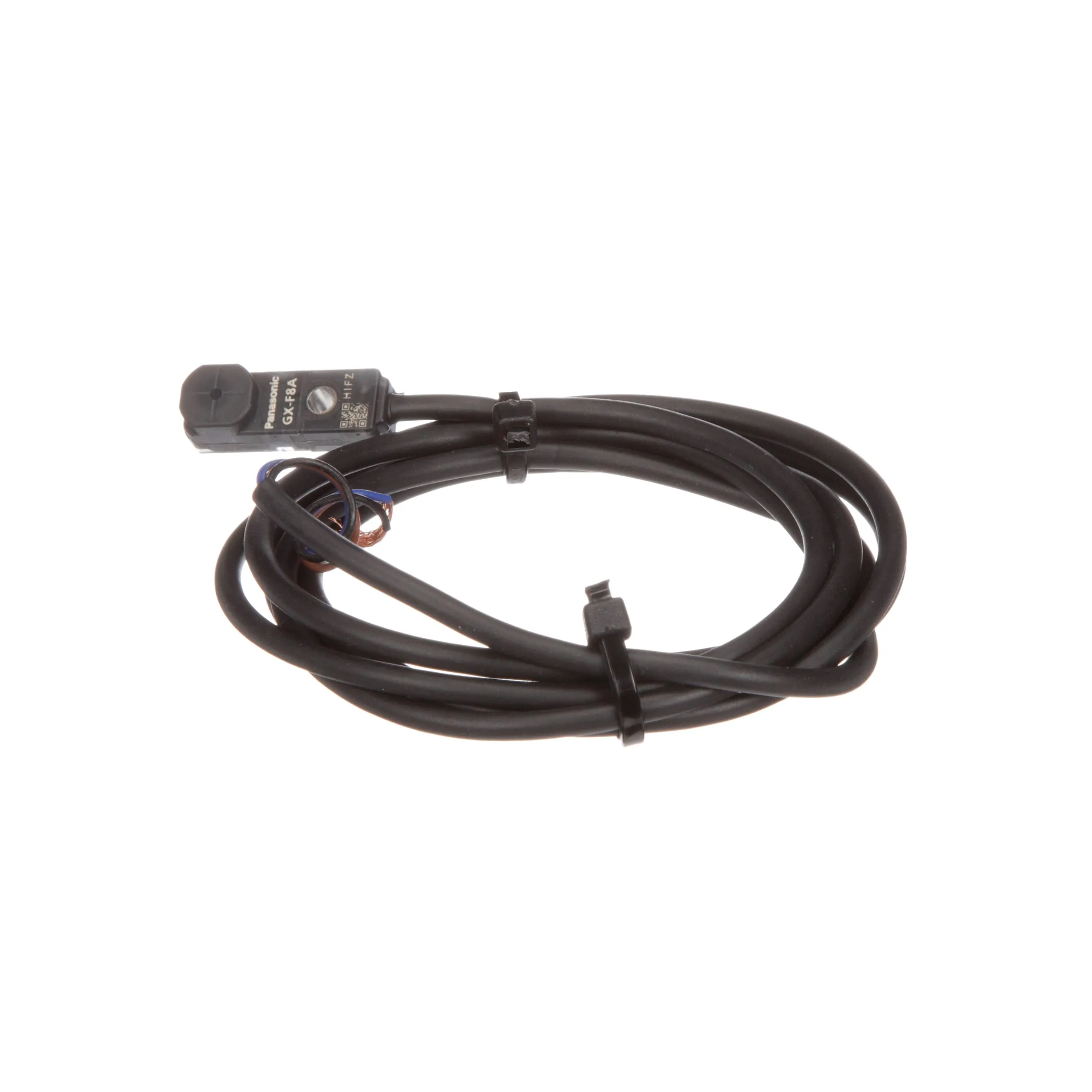

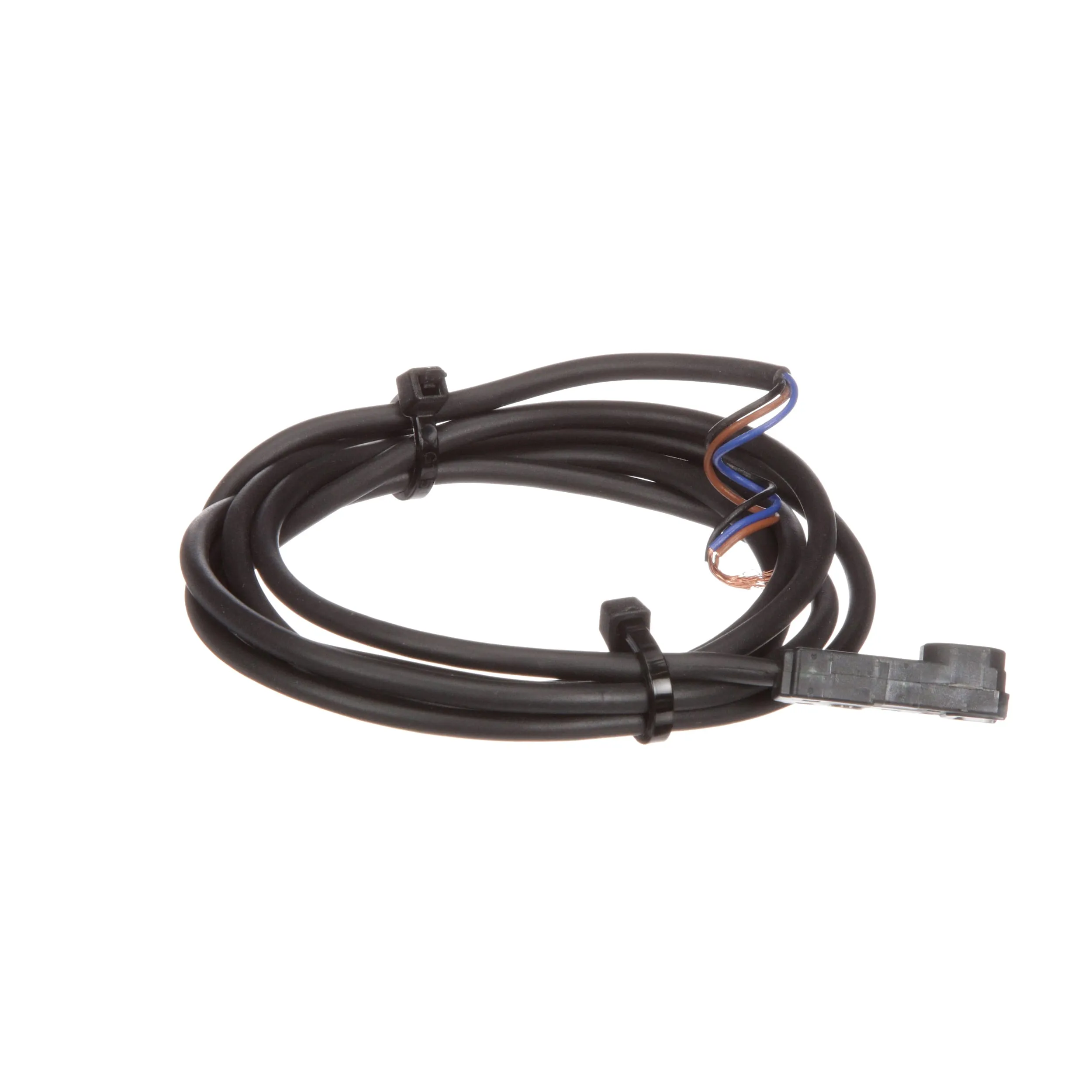

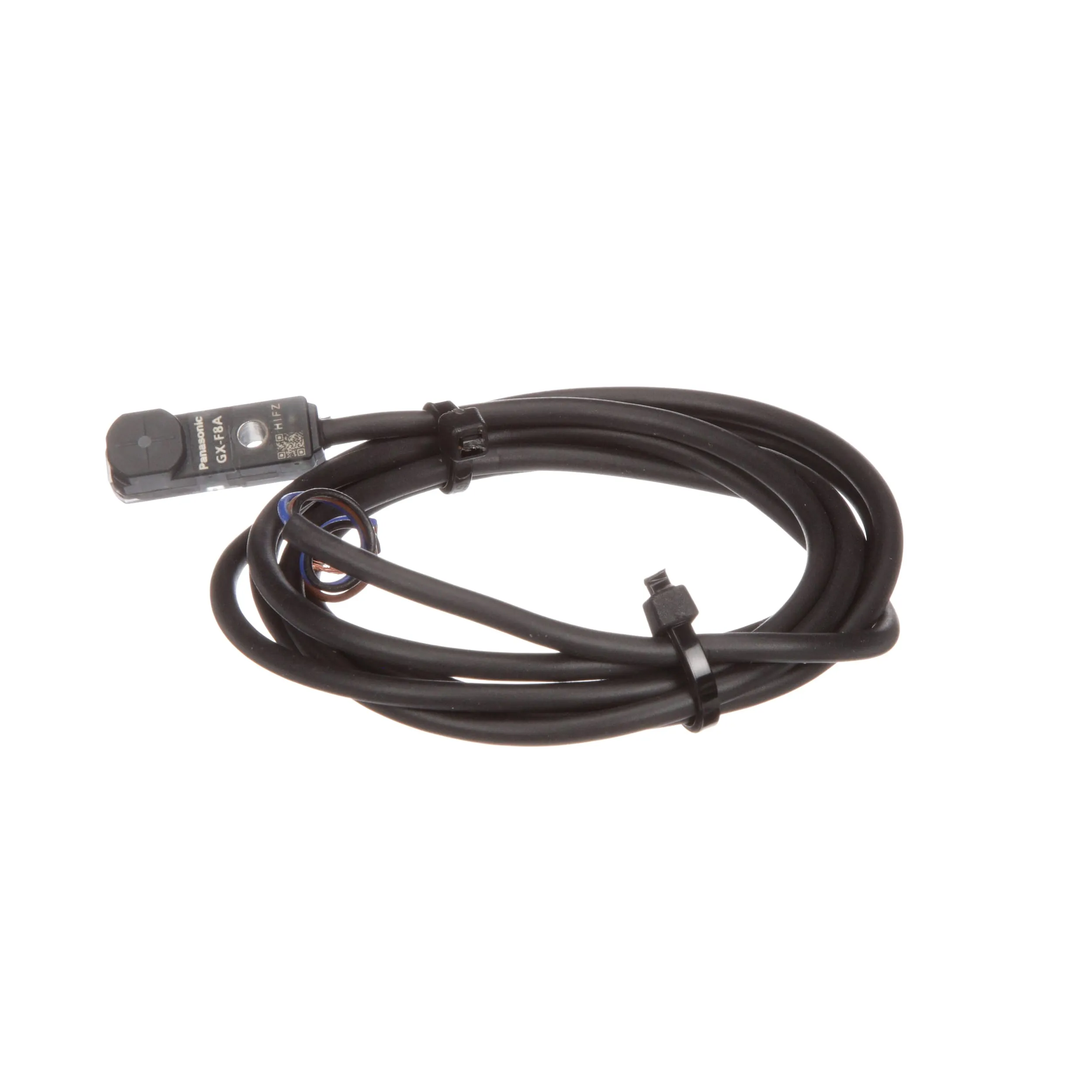

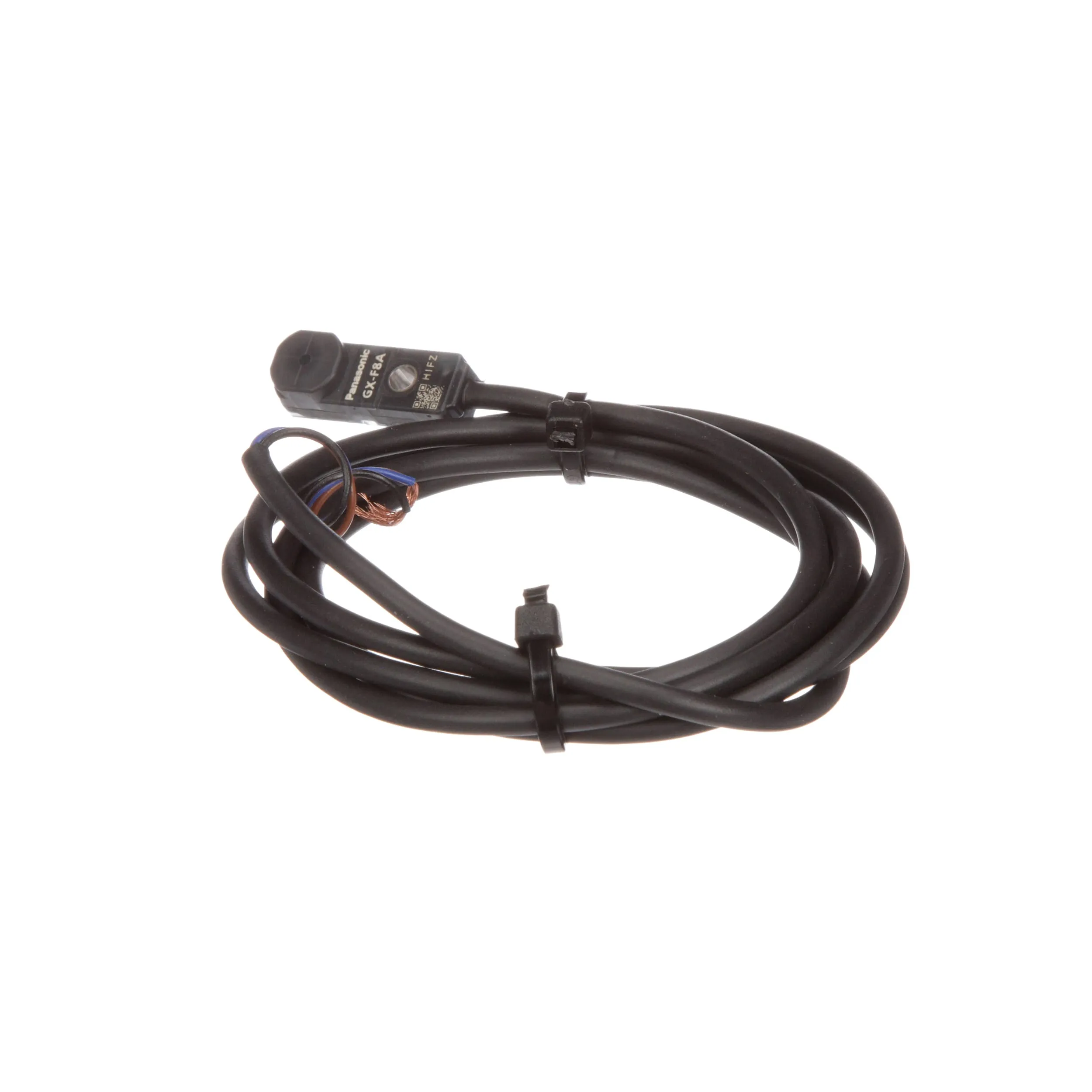

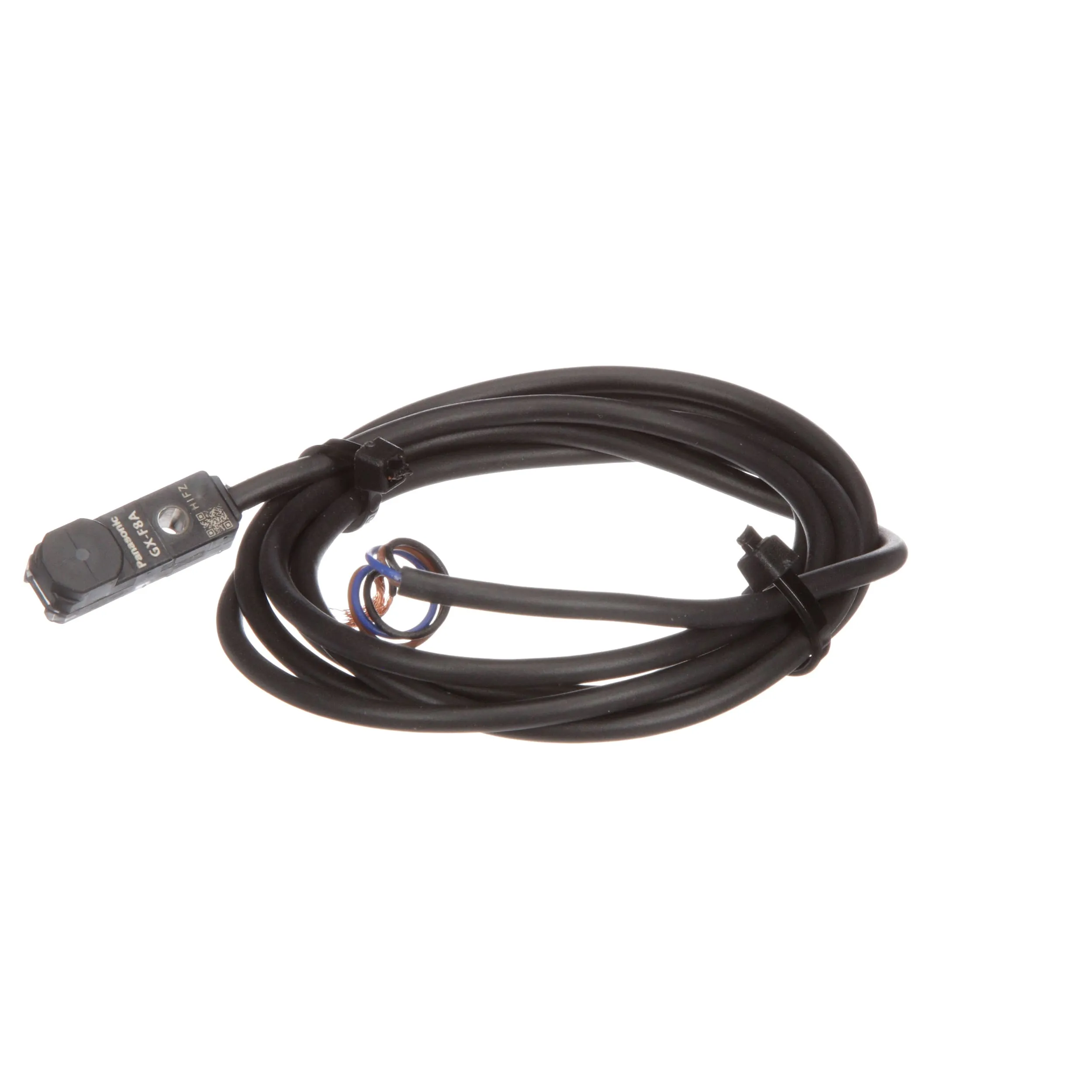

This sensor has the longest stable sensing range among comparable rectangular inductive proximity sensors in the industry. It is easy to install and its precise adjustment and control of sensing sensitivity greatly reduces individual sensor differences and variations. The sensor's coil has been completely redesingned to provide excellent temperature characteristics, which allows for stable sensing to be obtained regardless of the time of day or season. Features:
