Product Details
＋

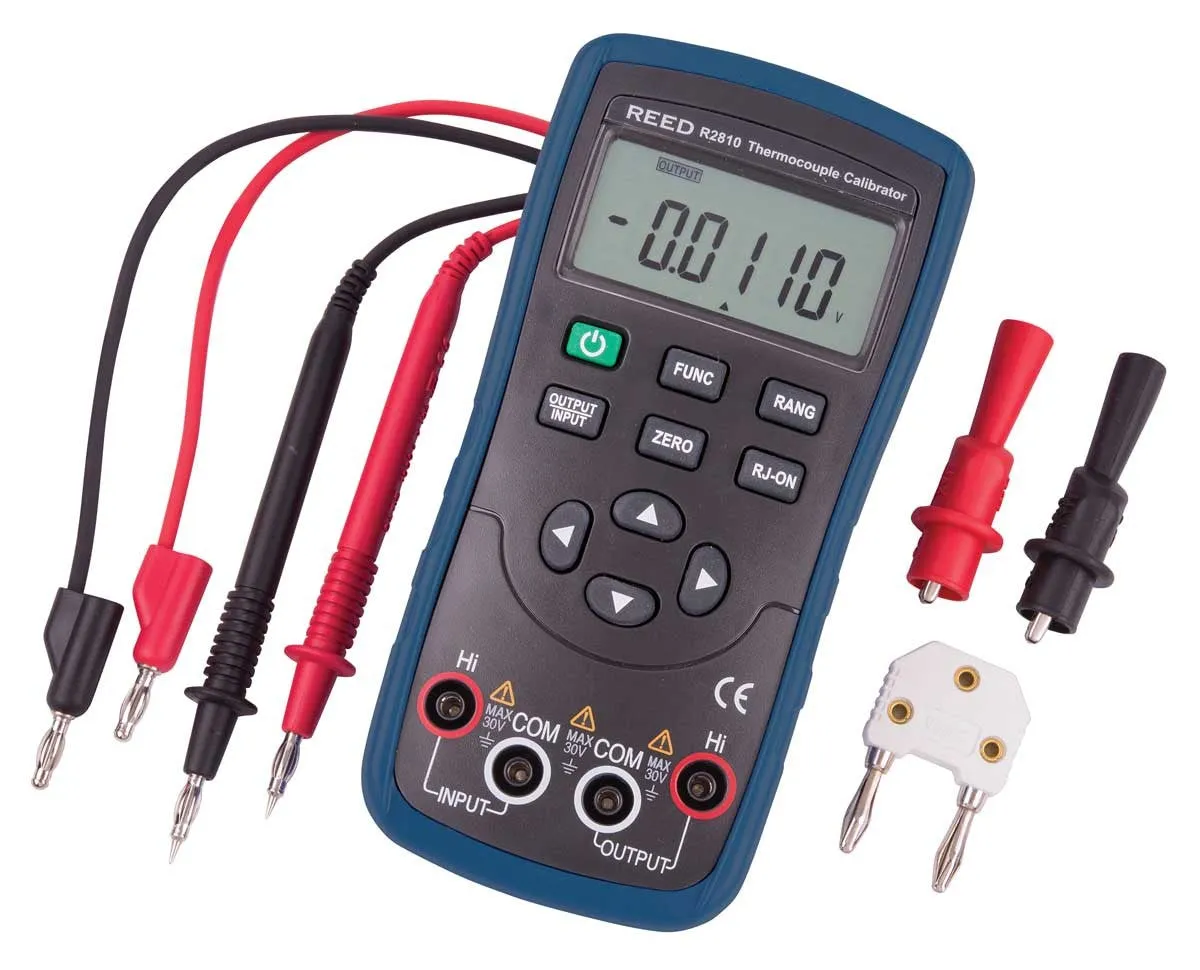

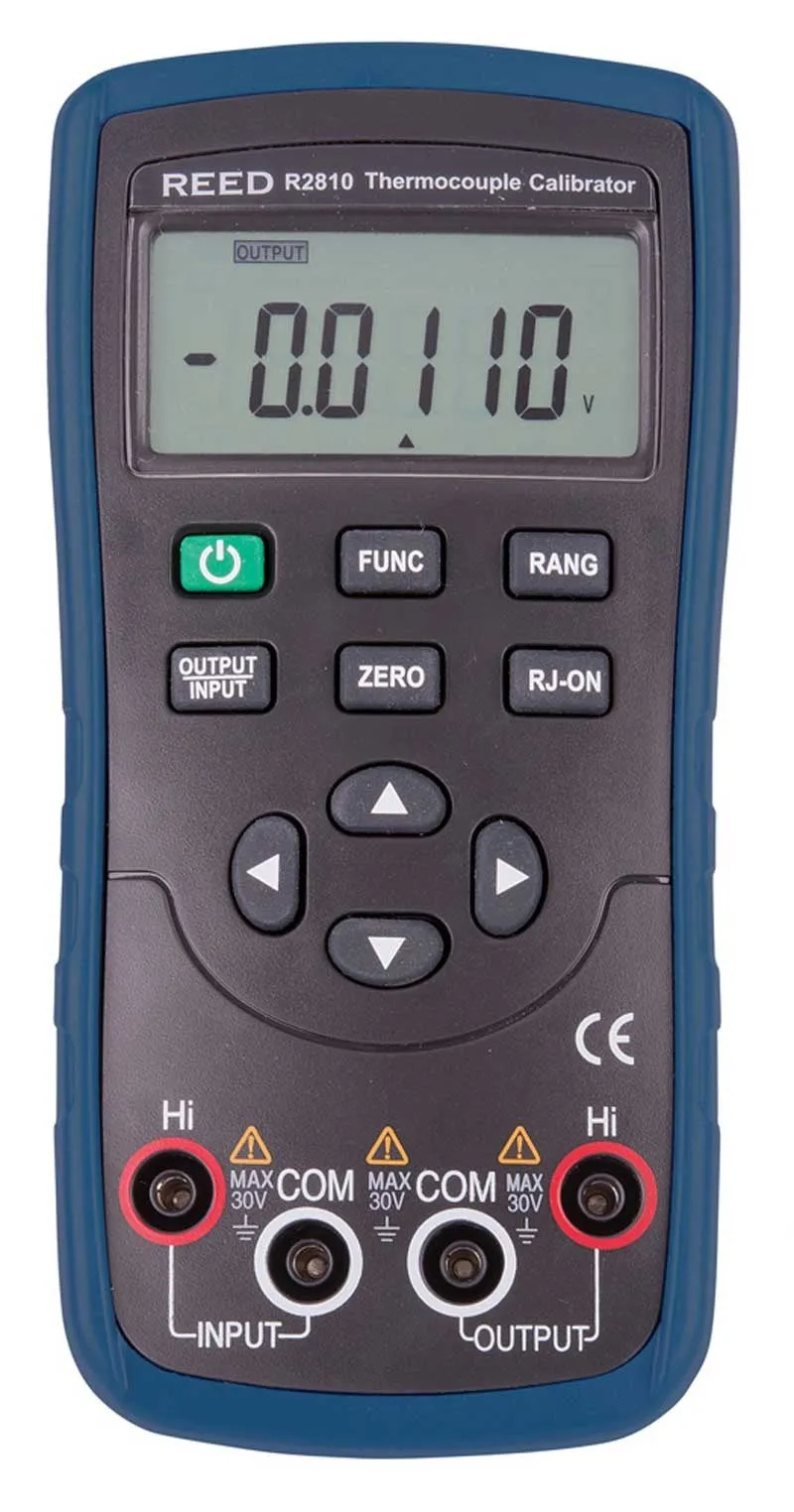

This thermocouple calibrator is capable of sourcing and measuring 8 different types of thermocouples. The R2810 features a easy-to-read LCD display, basic accuracy of 0.05% and includes the essentials to test and calibrate your temperature sensors.
Features
- Source and measure 8 thermocouple types, including R, S, B, E, K, J, T, N; and volts
- Basic accuracy of 0.05%
- Internal cold junction compensation
- Easy to read 6-digit LCD display
- Zero adjustment button
- User selectable unit of measure (°F/°C)
- Low battery indicator and auto shut off
Specifications
| Measure Function | ||||
| Output | Range | Output Range | Resolution | Accuracy |
| DCV | 100mV | -10 to 110mV | 0.01mV | 0.05% rdg. 30mV |
| TC | R | -40 to 1760°C | 1°C | ±0.05% rdg. 3°C (≤100°C); ±0.05% rdg. 2°C (>100°C) |
| S | -20 to 1760°C | 1°C | ||
| B | 400 to 1800°C | 1°C | ±0.05% rdg. 3°C (400 to 600°C); ±0.05% rdg. 2°C (>600°C) |
|
| E | -200 to 1000°C | 0.1°C | ±0.05% rdg. 2°C (≤-100°C); ±0.05% rdg. 1°C (>-100°C) |
|
| K | -200 to 1370°C | 0.1°C | ||
| J | -200 to 1200°C | 0.1°C | ||
| T | -200 to 400°C | 0.1°C | ||
| N | -200 to 1300°C | 0.1°C | ||
| Source Function | ||||
| Output | Range | Output Range | Resolution | Accuracy |
| DCV | 100mV | -10 to 110mV | 0.01mV | 0.05% rdg. 30mV |
| 1V | -0.1 to 1.1V | 0.1mV | 0.05% rdg. 0.3mV | |
| TC | R | -40 to 1760°C | 1°C | ±0.05% rdg. 3°C (≤100°C); ±0.05% rdg. 2°C (>100°C) |
| S | -20 to 1760°C | 1°C | ||
| B | 400 to 1800°C | 1°C | ±0.05% rdg. 3°C (400 to 600°C); ±0.05% rdg. 2°C (>600°C) |
|
| E | -200 to 1000°C | 0.1°C | ±0.05% rdg. 2°C (≤-100°C); ±0.05% rdg. 1°C (>-100°C) |
|
| K | -200 to 1370°C | 0.1°C | ||
| J | -200 to 1200°C | 0.1°C | ||
| T | -200 to 400°C | 0.1°C | ||
| N | -200 to 1300°C | 0.1°C | ||
| General Specifications | ||||
| Display | 6-Digit LCD | |||
| Zero Adjustment Button | Yes | |||
| Kick Stand | Yes | |||
| Power Supply | 2 AA Batteries | |||
| Cold Junction Compensation | Yes | |||
| Auto shut off | Yes (after 15 mins/off) | |||
| Low Battery Indicator | Yes | |||
| Replaceable Test Leads | Yes | |||
| Product Certifications | CE | |||
| Operating Temperature | 32 to 122°F (0 to 50°C) | |||
| Operating Humidity Range | 0 to 85% | |||
| Storage Temperature | 14 to 122°F (-10 to 50°C) | |||
| Dimensions | 7.1 x 3.5 x 1.9" (180 x 90 x 47mm) | |||
| Weight | 8.2oz (500g) | |||
