Product Details ＋

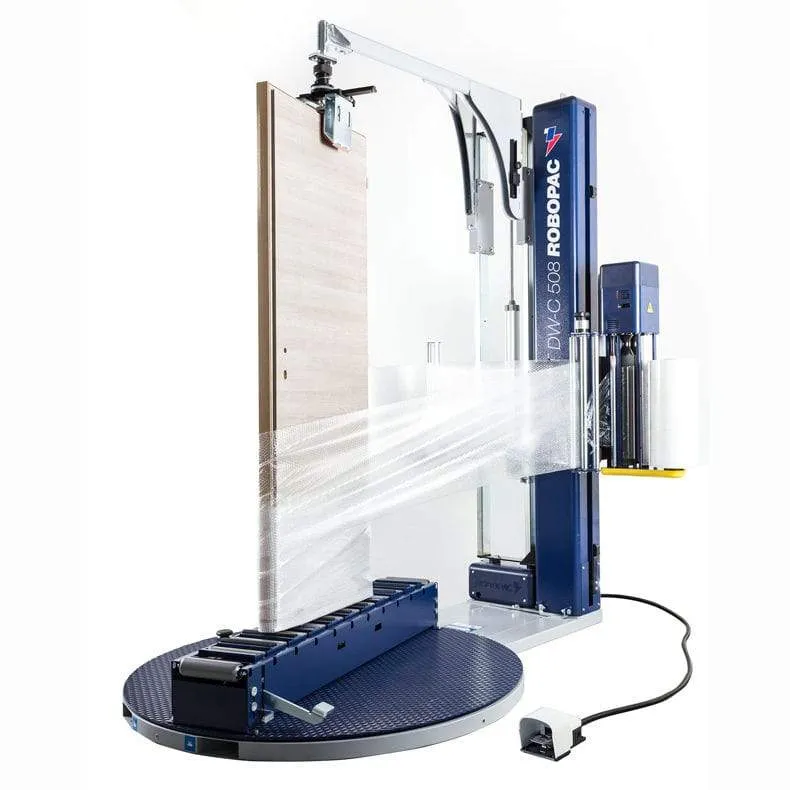

The Rotoplat 508’s intuitive seven (7) inch color touchscreen makes it easy to set up the correct parameters for wrapping each of your loads. You control containment force, rotation speed, roping and banding at nine (9) levels on each load.

Lock in and save the best wrap settings for up to six (6) completely unique load configurations. Your operator can then recall the appropriate program over and over with a touch of the icon-driven touch screen.

CUBE Technology will reduce your film usage by 30% – 55% over currently available competitive stretch wrapping systems. It will also improve your load containment and reduce potential product damage. This ensures that your product reaches your customer in “as-made” condition by maintaining proper wrapping standards.

The Multi-Level Variable Containment is optimized at each level and containment force is adjustable up to nine (9) times on each load.

R-Connect Ready

R-Connect, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.

Technical Data

Performance
Production Speed	Up to 40 LPH
Load Capacity
Max Load Dimensions	52"(w) x 52" (l) x 110" (h)
Maximum Load Weight	4400 lbs
Machine Structure
Turntable Height	3"
Turntable Diameter	65"
Turntable Construction	3/8" diamond plate steel
Turntable Drive Motor	1 HP VAC
Turntable Speed	5 - 12 RPM
Film Delivery System
Standard Pre-Stretch	Fixed 250%
Containment Force	Multi-Level Variable
Film Carriage Motor	1/2 HP VAC Chain-Driven
Height Sensing	Automatic via Photocell
Film Threading	Patented S-Pattern
Corner Compensation	Load Cell
Operator Interface
Control Panel	Touch Screen HMI
Wrapping Menus	6 Programmable Menus
Utility Requirements
Electrical	115V, 20 amps, 60Hz, 1PH
Safety Features
Anti-Fall Device on Carriage	YES
Pressure Activated Safety Stop on Carriage	YES
CE Compliant, UL, CUL	YES

Features

Cube® "SMART Stretch Wrapping" Technology

Innovative technology that combines multi-level variable pre-stretch, multi-level variable containment force, pro-active corner compensation, and strategic film placement to successfully wrap loads & ensure that they reach your customer in as-made condition by maintaining proper wrapping standards.

Icon Driven Touchscreen

Makes setting parameters easy & intuitive with an interface that offers a tablet-like experience that allows you to tap & scroll your way through settings.

Multi-Level Variable Containment Force

Delivers optimal containment force at each level. Containment force is adjustable up to 9 times on each load.

Multi-Level Variable Pre- Stretch

Ensures the best film economy for every load. Adjust the pre-stretch up to 9 times on each load. Multi-Level Variable Pre-Stretch Technology delivers 30% to 55% film savings over currently available competitive stretch wrapping systems.

R-Connect® Ready

Able to install R-Connect® remote monitoring software immediately.

Standard 110" Wrap Height

Ensures you can wrap even your tallest loads.

Warranty

Written guarantee to repair or replace the machine if necessary.

AVAILABLE OPTIONS

30" Film Carriage

Auto Film-Cutting Device

Cold Package

Extended Warranty

Ramp
